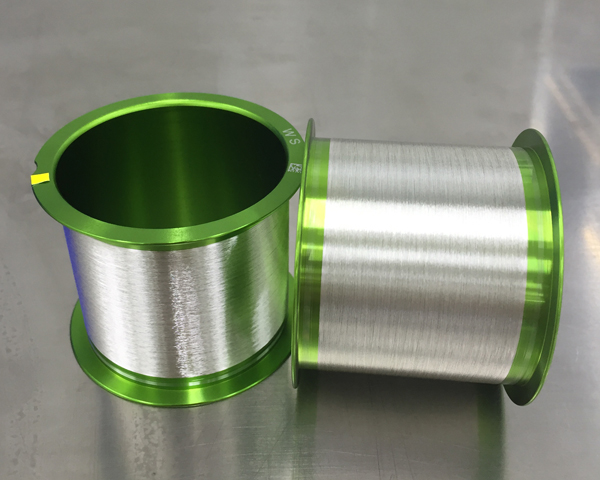

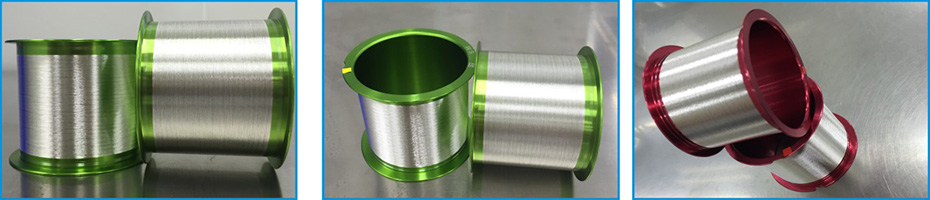

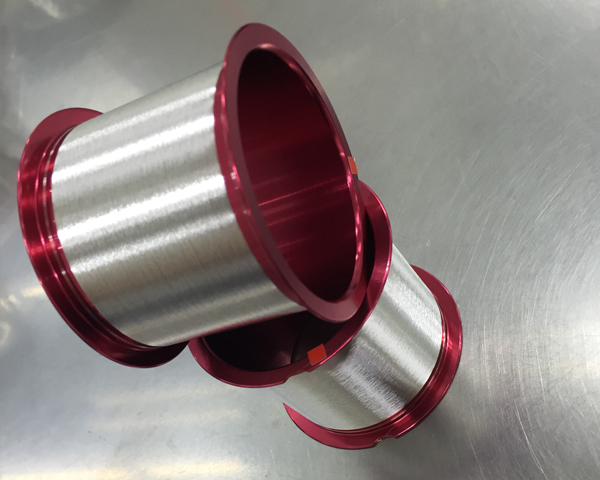

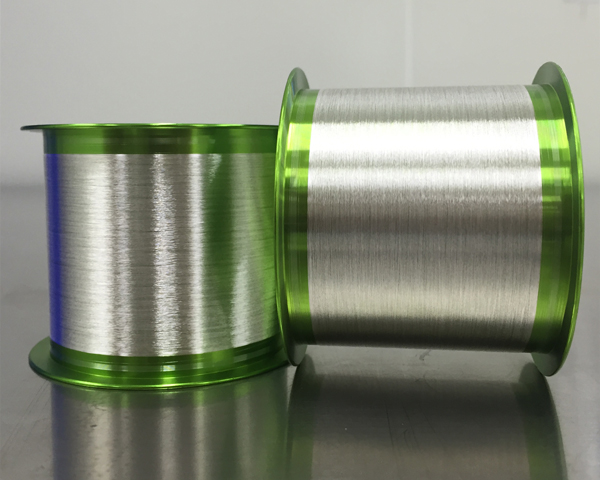

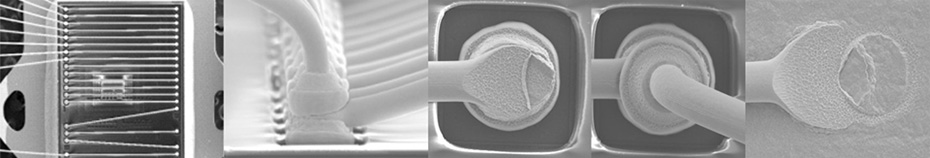

金银合金线
• 低电阻，导电性好
• 成本低
• 高可靠性，可焊性比较好
• 寿命长
• 在短波长领域具有优良的反射率
• 柔软的FAB
产品分类
| 类别 | 特征 | 应用范围 |
| WS-SAG9 | 高反射率，质软 |
QFP、BGA、Discrete、SOP、QFN、TSOP、SOT, LED PACKAGE |
| WS-HGS8 | 高性能 | |
| WS-SAG5 | 低电阻 | |
| WS-SAG2 | 柔软的FAB |

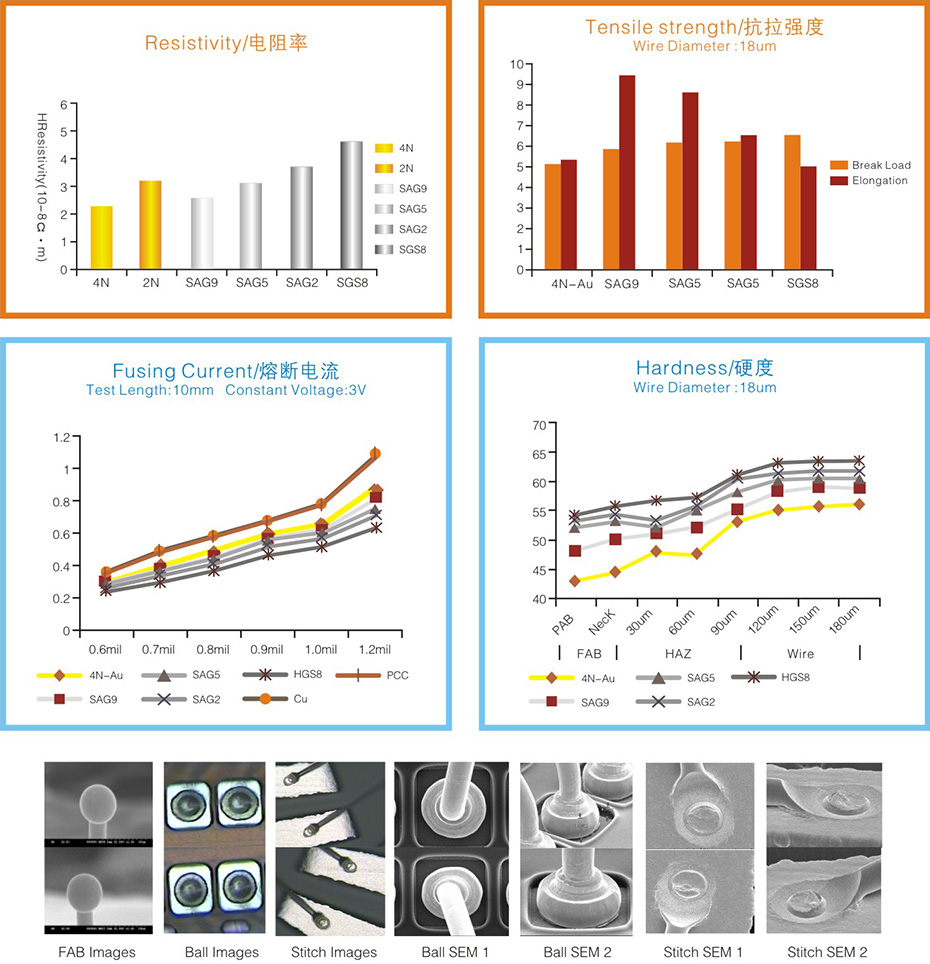

机械性能
| Dia/直径 | EL/延伸率(%) | BL/拉断力(gf) | |||||||
| mil | um | WS-SAG9 | WS-HGS8 | WS-SAG5 | WS-SAG2 | WS-SAG9 | WS-HGS8 | WS-SAG5 | WS-SAG2 |
| 0.6 | 15 | 5-10 | 2-9 | 5-10 | 5-10 | >3.0 | >4.0 | >3.5 | >4.0 |
| 0.7 | 18 | 7-13 | 2-9 | 7-13 | 7-13 | >4.0 | >4.0 | >4.0 | >5.0 |
| 0.8 | 20 | 7-13 | 2-9 | 7-13 | 7-13 | >6.0 | >6.0 | >6.0 | >6.0 |
| 0.9 | 23 | 7-13 | 2-9 | 7-13 | 7-13 | >8.0 | >8.0 | >8.0 | >8.0 |
| 1.0 | 25 | 7-13 | 2-9 | 7-13 | 7-13 | >10.0 | >10.0 | >10.0 | >10.0 |
| 1.2 | 30 | 8-15 | 3-12 | 8-15 | 8-15 | >14.0 | >13.0 | >13.0 | >15.0 |
TDS for Au Wire
|
Main Purity |
Ag 99% |
Ag97% |
Ag95% |
Ag92% |
Ag88% |
|
|
Wire Type |
SAG9 |
SAG7 |
SAG5 |
SAG2 |
HGS8 |
|
|
Hardness(Hv) |
FAB |
35 ~ 45 |
40 ~ 50 |
45 ~ 55 |
45-55 |
45 ~ 55 |
|
|
Wire |
45 ~ 55 |
50 ~ 60 |
55 ~ 65 |
55-68 |
60 ~ 70 |
|
Fusing Current(A)(±0.02A,Length=10mm) |
0.29 ~ 1.20 |
0.30 ~ 1.25 |
0.31 ~ 1.34 |
0.31-1.31 |
0.31 ~ 1.32 |
|
|
Resistivity(uΩ Cm) |
2.2 |
3.1 |
3.2 |
3.9 |
4.6 |
|
|
Recrystalization Temp.(℃) |
410~480 |
410~480 |
410~480 |
410~480 |
410~480 |
|
|
Elastic Modulus(Gpa) |
75 ~ 90 |
75 ~ 90 |
75 ~ 90 |
75 ~ 90 |
75 ~ 90 |
|
|
Melting Point(℃) |
980 ~ 1010 |
980 ~ 1010 |
980 ~ 1010 |
980 ~ 1010 |
980 ~ 1010 |
|
|
Density(gr/㎤) |
10.31 |
10.61 |
10.63 |
10.68 |
10.94 |
|
|
Cofficient of Linear thermal Expansion(20~100℃) |
18~20 x 10-6 |
18~20 x 10-6 |
18~20 x 10-6 |
18~20 x 10-6 |
18~20 x 10-6 |
|
|
Shelf Life(From data of Manufacturing/day) |
12Months |
12Months |
12Months |
12Months |
12Months |
|
|
Floor Life(Opened from barrier bag) |
2Weeks |
2Weeks |
2Weeks |
12Months |
2Weeks |
|
